產品商城 > 大圖輸出機 > Océ Arizona 2280 GT
Océ Arizona 2280 GT
- 商品介紹
- 產品規格

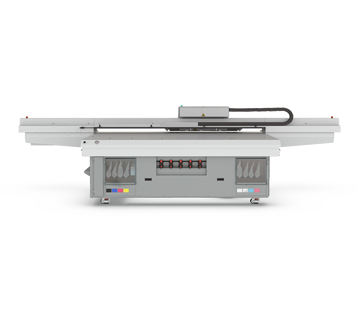

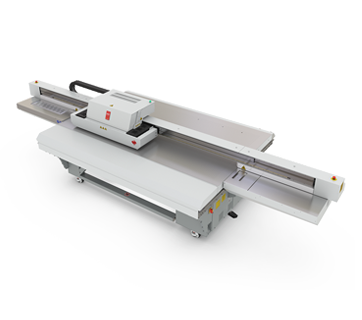

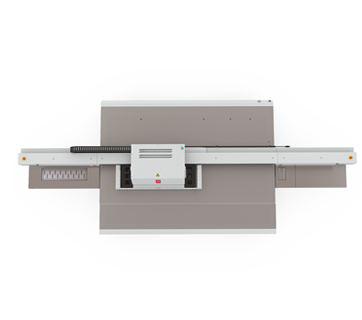

Océ Arizona 2280 GT
最新 Océ Arizona® 2200 系列真平台式印表機為高容量中型印刷業者提供優異的列印品質、多功能性和可靠性。
- 最大列印區域：125 x 250cm
- Océ VariaDot™ 成像技術
- 淺色墨水或 CM2
- 白色墨水和清漆
- 高解析度列印模式
- 捲筒紙張選購件
- 自動化列印頭維護系統
- 氣動紙張定位銷
- 最大列印速度 (m2/hr)：57.6
獎項
產品特色
高列印品質，兩倍生產力
Océ Arizona 2200 系列真平台式印表機為中型看板製造商帶來新的生產力、多功能性和品質。Arizona 2280 GT 延伸暢銷的 Arizona 系列，使用獲獎肯定的 OcéVariaDot 成像系統提供令人讚嘆的列印品質，結合高品質列印與低墨水消耗。
8 通道壓電噴墨系統的每個色彩通道有兩個 636 噴嘴可變墨滴列印頭，讓 OcéArizona2280 GT 以驚人的速度完成列印工作。UV 固化墨水採用快速更換式 3 公升袋包裝，便於補充，同時提供各種列印模式，從超快速模式到美術以及接近相片品質等。
超多功能
能以任何顏色在各種紙張和物體上列印，讓列印服務供應商從各種應用獲得收入。其中包括標準看板（POP / POS、零售看板）、物體上的裝飾性或功能性列印或小量包裝應用。採用標準平台尺寸，幾乎任何可以想像的工作都能使用任何尺寸的紙張或物體輕鬆實現 – 最厚 50.8mm，最大 125 x 250 cm。第三代 UV 固化系統可確保高品質成果，即使使用最薄、對熱最敏感的紙張也一樣。
無與倫比的可靠性和精確度
拜Arizona 2280 GT 的智慧生產力功能所賜，每每創造令人讚嘆的列印效果。平台上的五個氣動定位銷能一致且輕易地裝入剛性紙張，實現完美對位。6 / 7 區真空系統針對標準剛性紙張尺寸進行最佳化，不必進行手動平台遮蔽。標配自動化列印頭維護系統，提供全自動列印頭清潔，每色不到 25 秒，確保每次列印的噴嘴性能一致。
特殊技術
Océ VariaDot智慧可變墨滴技術
應用奧西專利的VariaDot技術，圖像細節要比恒定大小墨滴的輸出設備更加細膩平滑。Océ Arizona2200系列UV印表機可以控制到最小6pl的墨滴大小，可以使圖像表現更加銳利清晰，灰階更加平滑，過渡更加均勻自然。當應用到最大42pl大小的墨滴時，可以迅速覆蓋深色部分，從而提高列印速度，並且使得深色部分更加堅實。Océ VariaDot專利成像技術可以實現照片級別的輸出品質，解析度堪比1,440dpi甚至更高。
選購件和升級路徑
選購件:
- 隨時加裝 2 個墨水通道（不適用於 Océ Arizona 2280 系列）
- 隨時加裝捲筒紙張選購件
- 隨時加裝靜電抑制套件
升級路徑:
2 通道升級應用：
- 將 Océ Arizona 2260 "L" GT / XT 轉換成 Océ Arizona 2280 GT / XT（增加白色墨水及／或清晰容量，用於背光和非白色紙張應用）或
- 將 Océ Arizona 2260 GT / XT 轉換成 Océ Arizona 2280 GT / XT（增加淺青色和淺洋紅色以獲得接近相片品質和美術印刷）。
Additional Awards
| Printer | ||
| Machine Type | Mid Volume UV flatbed printer | |
| Printing method | Piezoelectric inkjet | |
| Number of nozzles | 8-channel piezoelectric inkjet system with two 636-nozzle, variable droplet printhead per channel. | |
| Ink configuration | CMYK LcLm WW, or CMYK LcLm WV, or CMYK CM WW, or CMYK CM WV |
|
| Image Technology | Piezoelectric inkjet system with variable droplet printheads | |
| Resolution | Variable droplet sizes from 6 to 42 picolitres. The ability to vary the drop size to 6 picolitres produces sharp images with smoother gradients and quartertones. The ability to jet larger droplets up to 42 picolitres produces uniform colors. The result is near-photographic quality with sharpness only before seen at resolutions of 1,440dpi or higher. Text as small as 2pt. is perfectly legible (with High Definition mode). | |
| Print Modes – Max M2/Hr | ||
| Express | 57.6 | |
| Production-Squared | 44.0 - CM2 Configuration only | |
| Production Fast | 44.0 - LcLm Configuration only | |
| Production-Smooth | 36.7 - CM2 Configuration only | |
| Production | 36.7 – Except CM2 Configuration | |
| Quality | 26.0 | |
| Quality-layered (2 layers) | 13.0 | |
| Ink System | ||
| Colors |
|
|
| System Design | ||
| True Flatbed | True flatbed for rigid media printing with available Roll Media Option for flexible media printing | |
| Rigid Media Maximum Area | 125 x 250cm | |
| Rigid Media Maximum Thickness | 50.8mm | |
| Rigid Media Print Area | 126 x 251 cm (for edge-to-edge printing) | |
| Rigid Media Maximum Weight | Up to 34kg/m2 | |
| Roll Media Specifications | 90 to 220cm, Up to 50kg (at any width), Maximum diameter: 240mm, Core: 3-inches (inside), Bias: Print-side-in or print-side-out, most types (application dependent) | |
| Automatic Printhead Maintenance System | The AMS (Automatic Printhead Maintenance System) enables quick, reliable and hands-free cleaning of a single colour in less than 25secs. or all colours in 2 to 4min. (depends on the printer version). | |
| Pin Registration | ||
| Number and Placement | 5 pneumatic operated pins | |
| Media size range for pin support | 60 x 80cm (min) to 125 x 250cm (max) | |
| Geometric Accuracy Flatbed | ||
| Line Width | ±0.8mm max error, measured over 2.5m | |
| Line Length | ±1.0mm max error, measured over 1.25m | |
| Line Straightness / Width | 0.7mm max error, measured over 2.5m | |
| Line Straightness / Length | 0.5mm max error, measured over 1.25m | |
| Diagonal Error | 1.0mm max error, measured over 2.5 x 1.25m | |
| Geometric Accuracy Roll Media Option | ||
| Line Width | ±0.6mm max error, measured over 2.19m | |
| Line Length | ±1.5mm max error, measured over 2.0m | |
| Line Straightness / Width | 0.7mm max error, measured over 2.19m | |
| Line Straightness / Length | 2.0mm max error, measured over 2.0m | |
| Diagonal Error | 2.5mm max error, measured over 2.0 x 2.19m | |
| Interface and Software | ||
| Interface Type | 10 / 100 / 1000 Base-T | |
| Production Management Software | ONYX® Thrive™ (421 configurations or greater recommended) | |
| Image Processing Software | ONYX® ProductionHouse™ (available, not recommended) | |
| Operational Environment | ||
| Electrical | 2 X 200 - 240V AC, 50 / 60Hz, Single-phase, Rated Current: 16A, Circuit Breakers Europe: 16A | |
| Compressed Air (Supplied by customer) | Clean, dry, compressed air using a Coalescing Filter, Pressure Regulator set to 690 kPa (100psi) and 6mm outside diameter air tubing. Peak flow: 56l/min at 690kPa | |
| Temperature | 18°C to 30°C | |
| Relative Humidity | RH: 30 - 70% (non-condensing) | |
| Room Ventilation | 1,200m3 per hour minimum (See Site Preparation Guide) | |
| Altitude | 2,750m maximum, however some components specify a limit of 2,000m | |
| Dimensions | Printer only: | 5.0 x 2.0m, 825kg |
| Printer + Roll Media Option: | 5.0 x 2.3m, 1,000kg | |
| Table height: | 0.88m / Overall height: 1.3m |
|
