Océ Arizona 1260 GT
- 商品介紹
- 產品規格

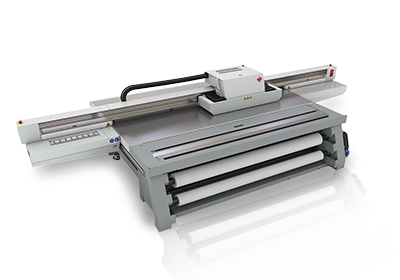

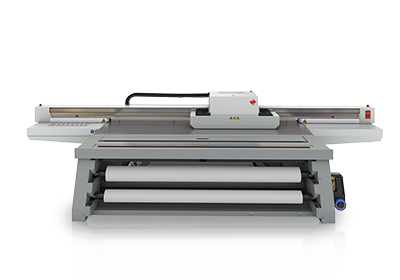

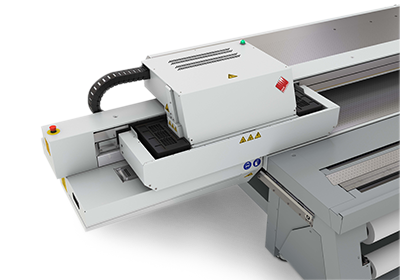

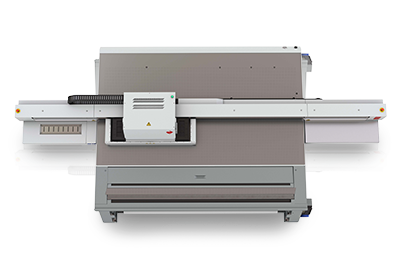

Océ Arizona 1260 GT
Océ Arizona 1200 系列UV平板印表機將滿足年印量在5,000-10,000 平方米以上，或峰值產能在每週400 平方米以上的用戶需求。 Arizona1260GT印表機採用奧西專利的VariaDot 智慧可變墨滴技術系統，有六個獨立墨路，多種的墨路選擇方案，純平臺的印表機結構設計，自動噴頭維護系統，氣動銷釘自動定位系統，更加強力的真空吸力系統，更加高效節能的UV 燈系統，這些都鑄就了Arizona 1260GT卓爾不群的圖像輸出品質，更加廣泛的應用種類，以及更加便捷、更加友好的操作體驗。
- 材最大規格 125 x 250 cm
- Océ VariaDot™ 影像技術
- 更低的平均耗墨量
- 獨立墨路配置
- 精准的對位系統
- 靈活多樣的材料選擇
- 可持續發展的生產力
- 快速更換的真空墨水包裝
- 最快列印速度(m²/hr): 33.6
獎項
無論是在剛性的板材還是柔軟的卷材，均可以擁有美輪美奐的圖像品質
Océ Arizona 1200 系列UV平板印表機將帶領您將圖像輸出的能力提升到新的水準應用奧西專利的VariaDot技術，圖像細節要比恒定大小墨滴的輸出設備更加細膩平滑。Océ Arizona1200系列UV印表機可以控制到最小6pl的墨滴大小，可以使圖像表現更加銳利清晰，灰階更加平滑，過渡更加均勻自然。當應用到最大42pl大小的墨滴時，可以迅速覆蓋深色部分，從而提高列印速度，並且使得深色部分更加。無論在堅硬的板材還是柔軟的卷材，甚至是玻璃、石材、鋼板等特殊的輸出材料上，也可以獲得美輪美奐的輸出品質。擁有了全新的Arizona 1200系列印表機，將加速業務回報，提升業務品質，獲得更高業務收益。
先進的設計理念和強大的性能革新，拓展了更加多樣的應用領域
Océ Arizona 1200 系列向世界開啟一扇門，在有限的設備投資前提下，可以提供無限的應用領域。與傳統的履帶式印表機或其它通過列印材料移動實現的列印系統相比，Océ Arizona 1200 系列幾乎可以實現任何近乎平面材料的列印。這就意味著無論是異形的、不規則的、表面不規整的材料，例如木材、鋼材、玻璃等特殊材料或者物體，都可以直接列印，雙面列印，重複精准的多次列印。
方便快捷的人性化系統設計
基於人性化的設計理念，在列印材料更換、系統設計、批量列印、墨水更換等細節的操作上都十分便捷、高效。極大提升了效率的同時，提供給操作人員的安心、舒心的工作環境。
特殊技術
Océ VariaDot智慧可變墨滴技術
應用奧西專利的VariaDot技術，圖像細節要比恒定大小墨滴的輸出設備更加細膩平滑。Océ Arizona2200系列UV印表機可以控制到最小6pl的墨滴大小，可以使圖像表現更加銳利清晰，灰階更加平滑，過渡更加均勻自然。當應用到最大42pl大小的墨滴時，可以迅速覆蓋深色部分，從而提高列印速度，並且使得深色部分更加堅實。Océ VariaDot專利成像技術可以實現照片級別的輸出品質，解析度堪比1,440dpi甚至更高。
Additional Awards
| Printer | |
| Machine Type | Mid Volume UV flatbed printer |
| Printing method | Piezoelectric inkjet |
| Number of nozzles | 6-channel piezoelectric inkjet system with one 636-nozzle, variable droplet printhead per channel. |
| Ink configuration | • Océ Arizona 1260 GT: CMYK WW • Océ Arizona 1260 GT: CMYK WV • Océ Arizona 1260 L GT: CMYK LcLm • Océ Arizona 1260 L GT: CM2YK |
| Image Technology | Piezoelectric inkjet using Océ VariaDot® grayscale imaging technology |
| Resolution | Variable droplet sizes from 6 to 42 picolitres. The ability to vary the drop size to 6 picolitres produces sharp images with smoother gradients and quartertones. The ability to jet larger droplets up to 42 picolitres produces uniform colors. The result is near-photographic quality with sharpness only before seen at resolutions of 1,440 dpi or higher. Text as small as 2 pt. is perfectly legible (with High Definition mode). |
| Print Modes – Max M2/Hr | |
| Express | 33.6 |
| Production | 20.4 |
| Quality | 14.2 |
| Quality-layered (2 layers) | • Océ Arizona 1260 GT: 7.1 • Océ Arizona 1260 L GT: n.a. |
| Ink System | |
| Colors | • Océ IJC255 UV curable inks or Océ IJC257 UV curable inks • Black, Cyan, Magenta, Yellow in 800 ml or 2 liter, quick-exchange pouches • White and Varnish in 1 liter, quick-exchange pouches |
| System Design | |
| True Flatbed | True flatbed architecture designed and build for optimized printing on rigid or sheet media or objects |
| Rigid Media Maximum Area | 125cm x 250 cm |
| Rigid Media Maximum Thickness | 50.8 mm |
| Rigid Media Print Area | Up to: 126 x 251 cm for edge-to-edge printing |
| Rigid Media Maximum Weight | Up to 34 kg/m2 |
| Roll Media Specifications | 90 to 220 cm, Up to 50 kg (at any width), Maximum diameter: 240 mm, Core: 3 inches (inside), Bias: Print-side-in or print-side-out, Most types (application dependent) |
| Pin Registration | |
| Number and Placement | 5 pneumatic operated pins |
| Media size range for pin support | 60 x 80 cm (min) to 125 x 250 cm (max) |
| Geometric Accuracy Flatbed | |
| Line Width | ±0.8 mm max error, measured over 2.5 m |
| Line Length | ±0.4 mm max error, measured over 1.25 m |
| Line Straightness/Width | 0.7 mm max error, measured over 2.5 m |
| Line Straightness/Length | 0.5 mm max error, measured over 1.25 m |
| Diagonal Error | 1.0 mm max error, measured over 2.5 m x 1.25 m |
| Geometric Accuracy Roll Media Option | |
| Line Width | ±0.6 mm max error, measured over 2.19 m |
| Line Length | ±1.5 mm max error, measured over 2.0 m |
| Line Straightness/Width | 0.7 mm max error, measured over 2.19 m |
| Line Straightness/Length | 2.0 mm max error, measured over 2.0 m |
| Diagonal Error | 2.5 mm max error, measured over 2.0 m x 2.19 m |
| Interface and Software | |
| Production Management Software | ONYX® Thrive™ (421 configurations or greater recommended) |
| Interface Type | 10/100 /1000 Base-T |
| Operational Environment | |
| Electrical | 2 X 200-240 VAC, 50/60 Hz, Single-phase, Rated Current: 16A, Circuit Breakers Europe: 16A |
| Compressed Air (Supplied by customer) | Clean, dry, compressed air using a Coalescing Filter, Pressure Regulator set to 690 kPa (100 psi) and 6 mm outside diameter air tubing. Peak flow: 56 l/min at 690 kPa |
| Temperature | 18°C to 30°C |
| Relative Humidity | RH: 30-70%, non-condensing |
| Room Ventilation | 1,200 m2 per hour minimum (See Site Preparation Manual for details) |
| Altitude | 2,750 m maximum, however some components specify a limit of 2,000 m |
| Dimensions | • Printer only: 4.66 m x 2.0 m, 785 kg • Printer + Roll Media Option: 4.66 m x 2.3 m, 960 kg • Table height: 0.88 m / Overall height: 1.3 m |
| Others | |
| Canon Service & Support | Canon Service & Support ensures the highest printer uptime enabling our customers to achieve their business goals. Several Canon Service Contract options, tuned to individual customer needs, are available. |
