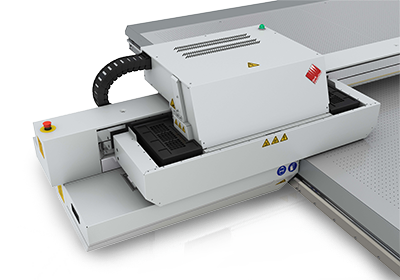

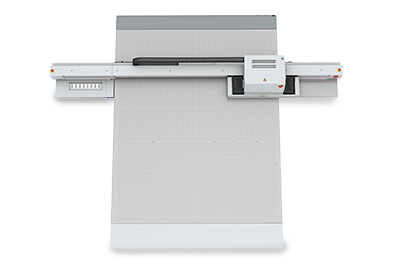

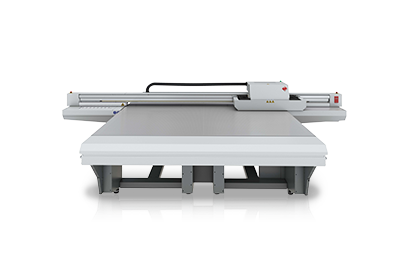

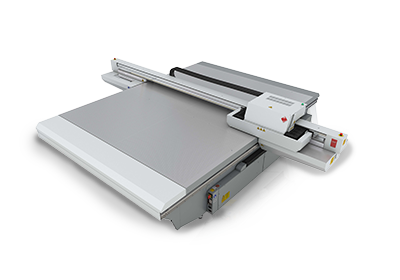

Océ Arizona 1280 XT

Printer

Machine Type

Mid Volume UV flatbed printer

Printing method

Piezoelectric inkjet

Number of nozzles

8-channel piezoelectric inkjet system with one 636-nozzle, variable droplet printhead per channel.

Ink configuration

CMYKcm W/V

Image Technology

Piezoelectric inkjet using Océ VariaDot® grayscale imaging technology

Resolution

Variable droplet sizes from 6 to 42 picolitres. The ability to vary the drop size to 6 picolitres produces sharp images with smoother gradients and quartertones. The ability to jet larger droplets up to 42 picolitres produces uniform colors. The result is near-photographic quality with sharpness only before seen at resolutions of 1,440 dpi or higher. Text as small as 2 pt. is perfectly legible (with High Definition mode).

Print Modes – Max M²/Hr

Express

35

Production

21.1

Quality

14.6

Quality-layered (2 layers)

7.3

Ink System

Colors

• Océ IJC255 UV curable inks or Océ IJC257 UV curable inks
• Black, Cyan, Magenta, Yellow in 800 ml or 2 liter, quick-exchange pouches
• White in 1 liter, quick-exchange pouches

System Design

True Flatbed

True flatbed architecture designed and build for optimized printing on rigid or sheet media or objects

Rigid Media Maximum Area

308 x 250 cm (320 x N cm permitted w/308 cm vacuum)

Rigid Media Maximum Thickness

50.8 mm

Rigid Media Print Area

Up to: 309 x 251 cm (321 x N cm permitted w/308 cm vacuum) (for edge-to-edge printing)

Rigid Media Maximum Weight

Up to 34 kg/m²

Roll Media Specifications

90 to 220 cm, Up to 50 kg (at any width), Maximum diameter: 240 mm, Core: 3 inches (inside), Bias: Print-side-in or print-side-out, Most types (application dependent)

Pin Registration

Number and Placement

5 pneumatic operated pins per vaccum zone / 10 pins total

Media size range for pin support

60 x 80 cm (min) to 305 x 250 cm (max)

Geometric Accuracy Flatbed

Line Width

±0.8 mm max error, measured over 2.5 m

Line Length

±1.0 mm max error, measured over 3.08 m

Line Straightness/Width

0.7 mm max error, measured over 2.5 m

Line Straightness/Length

0.7 mm max error, measured over 3.08 m

Diagonal Error

1.0 mm max error, measured over 3.08 x 2.5 m

Geometric Accuracy Roll Media Option

Line Width

±0.6 mm max error, measured over 2.19 m

Line Length

±1.5 mm max error, measured over 2.0 m

Line Straightness/Width

0.7 mm max error, measured over 2.19 m

Line Straightness/Length

2.0 mm max error, measured over 2.0 m

Diagonal Error

2.5 mm max error, measured over 2.0 m x 2.19 m

Interface and Software

Production Management Software

ONYX® Thrive™ (421 configurations or greater recommended)

Interface Type

10/100 /1000 Base-T

Operational Environment

Electrical

2 X 200-240 VAC, 50/60 Hz, Single-phase, Rated Current: 16A, Circuit Breakers Europe: 16A

Compressed Air (Supplied by customer)

Clean, dry, compressed air using a Coalescing Filter, Pressure Regulator set to 690 kPa (100 psi) and 6 mm outside diameter air tubing. Peak flow: 56 l/min at 690 kPa

Temperature

18˚C to 30˚C

Relative Humidity

RH: 30-70%, non-condensing (certain media may require a smaller RH operating range)

Room Ventilation

1,200 m³ per hour minimum (See Site Preparation Manual for details)

Altitude

2,750 m maximum, however some components specify a limit of 2,000 m

Dimensions

• Printer only: 4.66 m x 3.83 m, 1,625 kg
• Printer + Roll Media Option: 4.66 m x 4.12 m, 1,800 kg
• Table height: 0.88 m / Overall height: 1.3 m
