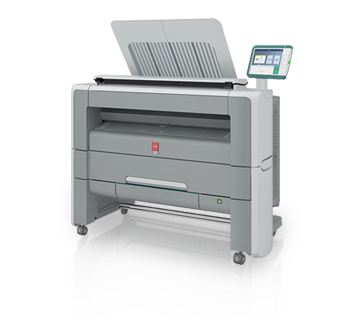

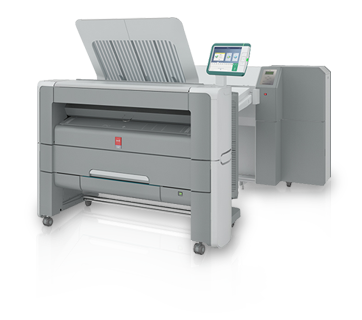

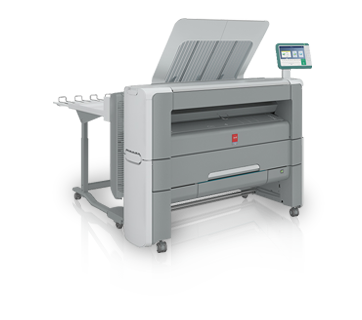

Océ PlotWave 345/365
Océ PlotWave 345/365 黑白光電大圖系統讓您體驗列印新潮流。在Océ ClearConnect 多點觸控螢幕上,您可使用平移、輕掃和展開等多種手指動作十分輕鬆地進行列印。它會是您構建辦公室網路和提升辦公室效率的得力助手。使用此款印表機,讓文檔處理工作更簡單、更高效、更靈活。
產品特色
全新的 Océ ClearConnect 多點觸控式面板,讓列印操作就像使用平板一樣直覺式簡單。您可使用平移、縮放、輕掃、展開及更多手指動作,快速無誤地進行操作。即時預覽功能,在掃描或影印時查看檔案內容,避免列印錯誤,簡單、更快捷方式為您節省更多時間。
藉由 Océ ClearConnect 多點觸控式面板,可直接存取檔案,若工作流程需求雲端服務,則可將檔案提取至機器並掃描存至選擇的雲端,即能簡化與其他使用者工作時的流程。除了雲端外,使用者亦可從 USB 隨身碟或網路位置瀏覽並移動檔案,然後立即列印,若檔案存放在行動裝置中,使用者還可透過公司的 WiFi利用 Océ Publisher Mobile 應用程式連結 Océ PlotWave 345/365 並列印,或透過 Océ Publisher Select 從桌上型電腦進行列印,藉以管理更複雜的文件檔案,提升整體效能。
每分鐘可列印多達4張A1 尺寸,幾乎不需要預熱時間。從冷開機到列印完成時間不超過40 秒。與其他普通印表機緩慢的4分鐘相比,Océ PlotWave 345/365 每天可輕鬆為您節省1 小時的列印延遲時間,進而讓列印效率增加300%。
透過 Océ ClearConnect 使用者面板或全新的 Windows 版 Océ Wide-format Printer Driver 2.0直接預覽功能,您可於第一次正確成功列印出複雜圖紙。「所見即所印」預覽中會清晰標記潛在錯誤。 Océ Color Image Logic 防止列印或掃描時出現折疊線明顯的問題。Océ PlotWave 348/365 可大幅提高您的效率,並幫您降低列印成本和人力時間成本。
特殊技術 Océ PlotWave 345/365獨有技術
Océ Radiant Fusing
Océ Radiant Fusing是一種環保的融合方法,提供即時啟動機器可用性,無需預熱時間。 與其他熔合方法相比,它消耗的能量更少,噪音和臭氧也更少。 除了環境效益外,它還提供令人難以置信的一致品質。 在熱輻射定影過程中,調色劑熔化並通過從導線網格上升的熱量熔化到紙質上,而不會使圖像變形。
Océ Colour Image Logic
Océ ClearConnect
Océ ClearConnect觸控螢幕如同平板電腦,可滑動、展開和放大設計圖的細節。利用即時掃描預覽檢察文件是否正確定位,在個人智慧收件夾中整理文件以節省時間。為了縮短準備時間,系統會自動選擇列印模式、影像位置及最適合的紙張捲筒。利用內建裝載站以及自動進紙和紙張寬度偵測快速切換捲筒。
General | ||
Description | Monochrome all-in-one wide format print / copy / scan system with colour scanner | |
Imaging Technology | Electrophotography (LED) with Organic photoconductor (OPC) Océ Radiant Fusing Technology with Instant warm up Clean toner refill system Virtually no ozone emission |
|
Speed | Black & White: Océ PlotWave 345: 4 A1 / D-size per minute Océ PlotWave 365: 6 A1 / D-size per minute |
|
First Print Out Time | 30 seconds (including 1 click USB printing, file processing, top delivery) | |
Warm-up Time | Instant with Océ Radiant Fusing technology | |
Roll Options | 1 or 2 rolls , manual feed of cut sheet media | |
Output Delivery | Compact and ergonomic top delivery tray with air separation; up to 50 A0 plots collated | |
Certifications | CE, TUV GS, CETECOM, C-UL-US, Energy Star 2.0, FEMP, Rohs, CCC, VCCC | |
Printer | ||
Print Resolution | 600 x 1200dpi | |
Paper Capacity | 1 roll: 183m2, 2roll: 365m2 | |
Output Sizes Width | 279 - 914mm | |
Output Sizes Length | 279 - 176,000mm for long plots | |
Paper Weight | 60 - 110g/m2 | |
Media Type (www.mediaguide.oce.com) |
Paper: | Plain paper, Transparencies, Translucent, Recycled paper, Engineering Bond, Engineering Vellum, Colored paper, Top & Green Label FSC, Red & Black Label PEFC, Recycled White Zero FSC |
Film: | Polyester 3.5 and 4 mil, Antistatic, Contrast, Clear Polyester, Double Matt, White Opaque | |
Controller | ||
Controller Type | Océ PowerSync controller with Windows®8 Embedded, 64 Bits Dual-Core G1620 @ 2.70GHz | |
Memory | 4GB DDR3 | |
Hard Drive | 500GB, 7200rpm | |
Page Description Language | TIFF, JPEG, HPGL, HPGL2, DWF, C4, Calcomp 906 / 907 / 951, CALS, NIRS, NIFF, PS / PDF (optional) | |
Scanner | ||
Scanner Type | Contact Image Sensor (CIS) with Océ Image Logic technology | |
Scan Resolution | 600 x 600dpi resolution | |
Scan Speed | 9.7 m/min. (Copying) 14.6 m/min. (Black & white scanning) 4.8 m/min. (Color scanning) |
|
Scan Format | TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF | |
Scan Destination | Local USB flash drive, FTP, SMB, Smart In box on Controller, Optional Local Home folder( LDAP), mobile device via Océ Mobile WebTools, WebDav Clouds, PlanWell Collaborate | |
Original Size | Width: | 208 - 914mm (maximum image width 914mm) |
Length: | 208 - 16000mm | |
Original Thickness | Up to 0.8mm (non-rigid documents) | |
Scaling | 1:1, Scale to media size, scale to standard format, custom scale 10 - 1000% | |
Preset Modes | Blueprint, Coloured original, Dark original, Folded lines/text, Lines/text standard, Lines/text draft, Photo, Map, Artwork | |
Print, Copy and Scan Workflow | ||
General Workflow | Concurrent print, copy and scan of single documents or sets | |
Submission | Single files: | Local USB flash drive, Océ Mobile WebTools, local USB flash drive, Microsoft® certified Océ Windows Printer Driver 2.0, Océ PostScript® 3 driver |
Sets of files: | local USB flash drive, web-based job submission Océ applications Windows based job submission Océ applications |
|
Océ Express WebTools: | Single interface to view and control the system via an Internet browser without installing additional software | |
Océ Mobile WebTools: | Submit files from your Mobile device or retrieve scanned files from the inbox | |
Job Management | Monitor and manage the system status, print jobs, settings, network configurations, updates, remote shutdown & restart. Includes personal smart inbox. | |
Accounting |
|
|
Scan to Color inkjet | Scan directly to Canon imagePROGRAF iPF 800 series via Océ Publisher Select 2 | |
Options | ||
Hardware |
|
|
Software |
|
|
Network Information | ||
Client Operating System Support |
|
|
Interface | Ethernet 100 Mbits/s, 1 Gbit/s TCP/IP: DHCP, IPv4, IPv6, HTTPS Discovery: APIPA, WS-Discovery, SNMP |
|
Printing Protocols | LPR, FTP, WebDav, WSD print | |
Scanning Protocols | FTP, SMB | |
Security | E-shredding, IPSec, IP filtering/Access Control Lists, HTTPS, audit logging, network protocol enable/disable, LDAP integration, Active Directory Integration (optional), User authentication on local ClearConnect user panel (LDAP/Active Directory credentials, smart card) for scan/copy/print. Configure HTTPS Certificates. Removable hard disk option, Optional FIPS 140-2 Certified Trusted Platform Module (TPM) and BitLocker based hard disk encryption, hard disk wipe (Only with Disk Encryption), Configurable CA certificate, Disable Network Ports and Protocols, Security Event Logging, Optional Single Sign-on (on device). | |
Environment Data | ||
Power Consumption Active Mode (printing) | 1.5kW | |
Power Consumption Ready Mode (standby) | 88W | |
Power Consumption Sleep Mode | 1W | |
Power Requirements (V / Hz / A) | 90 - 240V, 50 / 60Hz | |
Sound Pressure Active Mode (printing) | Less than 55dB | |
Sound Pressure Ready Mode (standby and sleep) | Less than 25dB | |
Ozone Concentrations | 0.001mg/m3, 0.000473 PPM (0.05% of permitted limit value) | |
Recyclability Hardware | Made of steel or highly recyclable plastics: | Up to 95% of the engine can either be upcycled or recycled. Remaining 5% are non toxic waste. |
Recyclability Toner | Bottles made of highly recyclable HDPE (High Density Polyethyle) | |
Size Print Engine (W x D x H) | 1527 x 803 x 1495mm including Top Delivery Tray | |
Weight Print Engine | 240kg | |
Size Scanner (W x D x H) | 1097 x 308 x 140mm fits on top of print engine | |
Weight Scanner | 25kg | |
Supplies | ||
Consumable Type | Océ black toner | |
Size | 400gm per bottle |
