Type

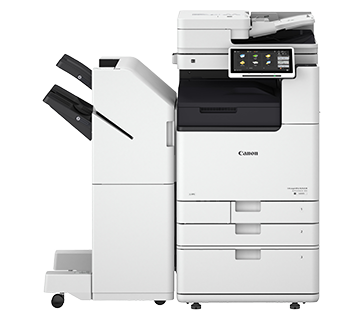

A3 Monochrome Laser Multifunctional

Core Function

Print, Copy, Scan, Send, Store and Optional Fax

Processor

Canon Dual Custom Processor (Shared)

Control Panel

10.1 inch TFT LCD WSVGA Colour Touch panel

Memory

Main CPU Side: 2 GB
Image Processing CPU Side: 1 GB + 0.5 GB

Storage

Standard: (SSD) 256 GB
Optional: (SSD) 1 TB

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

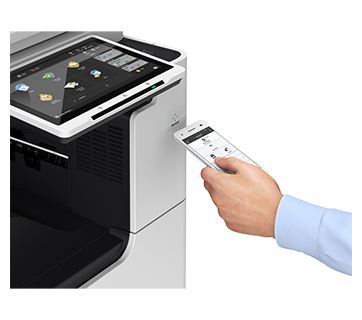

Optional: Bluetooth Low Energy

OTHERS
Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device)
Optional: Serial Interface, Copy Control Interface

Paper Supply Capacity (A4, 80 gsm)

Standard: 1,200 sheets
1 x 100 sheets multi-purpose tray
2 x 550 sheets standard cassettes

Maximum: 3,650 sheets (with High Capacity Cassette Feeding Unit-E1)

Paper Output Capacity (A4, 80 gsm)

Standard: 250 sheets
Maximum: 3,450 sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T2)

Finishing Capabilities*1

Standard: Collate, Group
With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, ECO Staple, Staple-On-Demand

Supported Media Types

Multi-purpose Tray: Thin, Plain, Heavy*2, Recycled, Coated*2, Colour, Tracing, Bond, Label, Pre-punched, Letterhead, Envelope

Upper Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Pre-punched, Letterhead, Envelope

Lower Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Pre-punched, Letterhead, Envelope*3

Supported Media Sizes

Multi-purpose Tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, ISO-C5, DL
Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm

Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: ISO-C5

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes*4: COM10 No.10, Monarch, DL

Supported Media Weights

Multi-purpose Tray: 52 to 300 gsm*2
Supported paper weight with Media Adjustment Kit-A1: 60-300 gsm
Upper/Lower Cassette: 52 to 256 gsm
Duplex: 52 to 220 gsm

Warm-up Time
(Quick start mode: ON)

Quick Startup Mode: 4 seconds or less*5
From Sleep Mode: 10 seconds or less
From Power On: 10 seconds or less*6

Dimensions (W x D x H)

With Platen Cover-Y3: 565 x 692 x 788 mm
With Single Pass DADF-C1: 565 x 722 x 897 mm
With DADF-BA1: 565 x 719 x 891 mm

Installation Space (W x D)

Basic:
978 x 1,119 mm (with Single Pass DADF-C1 + right door & multi-purpose tray opened + paper cassette opened)
978 x 1,116 mm (with DADF-BA1 + right door & multi-purpose tray opened + Paper cassette open)

Fully Configured:
1,651 x 1,119 mm (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette open)
1,651 x 1,116 mm (with DADF-BA1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette open)

Weight (Including toner)

With Platen Cover-Y3: Approx. 62 kg
With Single Pass DADF-C1: Approx. 75 kg
With DADF-BA1: Approx. 69 kg

Print Speed (1 sided)

iR-ADV DX 4845i up to: 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R)

iR-ADV DX 4835i up to: 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R)

iR-ADV DX 4825i up to: 25 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

Print Resolution (dpi)

1,200 × 600,
1,200 × 1,200 (half-speed)

Page Description Languages

Standard: UFR II, PCL6
Optional: Adobe® PostScript® 3™

Direct Print (RUI)

Supported File Types: PDF, EPS, TIFF/JPEG, XPS

Printing from Mobile and Cloud

AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print

Fonts

PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*7 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*8

PS fonts: 136 Roman

Operating System

UFRII: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server2016 / Server2019 / Server2022, Mac OS X (10.11 or later)
PCL: Windows® 8.1 / 10 / 11 / Server2012 /Server2012 R2 / Server2016 / Server2019 / Server2022
PS: Windows® 8.1 / 10 / 11 / Server2012 /Server2012 R2 / Server2016 / Server2019 / Server2022, Mac OS X (10.11 or later)
PPD: Windows® 8.1 / 10 / 11, Mac OS X (10.11 or later)

Copy Speed (1 sided)

iR-ADV DX 4845i up to: 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R)

iR-ADV DX 4835i up to: 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R)

iR-ADV DX 4825i up to: 25 ppm (A4, A5, A5R, A6R) , Up to 15 ppm (A3), Up to 20 ppm (A4R)

First-Copy-Out Time (A4)

iR-ADV DX 4845i: 4.6 seconds
iR-ADV DX 4835i: 5.5 seconds
iR-ADV DX 4825i: 6.1 seconds

Copy Resolution (dpi)

600 x 600

Multiple Copies

Up to 9,999 copies

Copy Density

Automatic or Manual (9 Levels)

Magnification

Variable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement (Others): 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%

Type

Standard: Colour Flatbed Scan Unit
Optional: Platen Cover-Y3, Single Pass DADF-C1*9 or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)]

Document Feeder Paper Capacity (80 gsm)

Single Pass DADF-C1: up to 200 Sheets
DADF-BA1: up to 100 Sheets

Acceptable Originals and Weights

Platen: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight:
Single Pass DADF-C1:
1-sided scanning: 38 to 220 gsm
2-sided scanning: 38 to 220 gsm
An acceptable weight of A6R or smaller is 50 to 220 gsm.

DADF-BA1: 1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)

Supported Media Sizes

Platen: max. scanning size: 297.0 x 431.8 mm

Single Pass DADF-C1:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R,
Custom size: 69.9 x 139.7 mm to 304.8 x 431.8 mm

DADF-BA1:
A3, A4, A4R, A5, A5R, B4, B5, B5R, B6,
Custom size: 139.7 x 128 mm to 297.0 x 431.8 mm

Scan Speed (ipm: BW/CL, A4)

Single Pass DADF-C1:
1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)
2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)

DADF-BA1:
1-sided Scanning: 70/70 (300 x 300 dpi, send), 51/51 (600 x 600 dpi, copy)
2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5/25.5 (600 x 600 dpi, copy)

Scan Resolution (dpi)

Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600

Pull Scan Specifications

Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server 2016 / Server 2019 / Server 2022

Destination

Standard: E-mail/Internet FAX (SMTP), SMB 3.1.1, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax

Address Book

LDAP (2,000)/Local (1,600)/One-touch (200)

Send Resolution (dpi)

Push: up to 600 x 600
Pull: up to 600 x 600

Communication Protocol

FTP: (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV
Email/iFax: SMTP(send), POP3(receive)

File Format

Standard: TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS(Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

Maximum Number of Connection Lines

4

Modem Speed

Super G3: 33.6 kbps
G3: 14.4 kbps

Compression Method

MH, MR, MMR, JBIG

Resolution (dpi)

400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)

Sending and Receiving Size

Sending: A3, A4, A4R, A5*10, A5R*10, B4, B5*11, B5R*10
Receiving: A3, B4, A4, A4R, A5R , B5, B5R

Fax Memory

Up to 30,000 pages (2,000 jobs)

Speed Dials

Max. 200

Group Dials / Destinations

Max. 199 dials

Sequential Broadcast

Max. 256 addresses

Memory Backup

Yes

Box

100 User Inboxes
1 Memory RX Inbox
50 Confidential Fax Inboxes
Maximum 30,000 Pages (2,000 jobs) Stored

Advanced Box

Communication Protocol: SMB or WebDAV
Supported Client PC: Windows® 8.1/10
Concurrent Connections (Max.): SMB: 64, WebDAV: 3

Advanced Box Available Disc Space

Standard: 16 GB
(With option: max. 480 GB)

Authentication and Access Control

User Authentication: Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login
Department ID Authentication: Department ID and PIN Login, Function Level Login
uniFLOW Online Express: PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login
Access Management System: Access Control

Document Security

Print Security: Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*12
Receive Data Security: Confidential Fax Inbox Forwarding Received Documents Automatically
Scan Security: Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration
BOX Security: Mail Box Password Protected, Advanced Space Access Control
Send Data Security: Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support
Document Tracking: Secure Watermark

Network Security

TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), Communication Line Separation (G3 FAX, USB Port, Advanced Space, Scan and Send -Virus Concerns for E-mail Reception)

Device Security

Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFP Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP) (available at a later schedule)

Device Management and Auditing

Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting

Operating Environment

Temperature: 10 to 30 ºC
Humidity: 20 to 80 % RH (Relative Humidity)

Power Source

220-240V, 50/60Hz, 5A

Power Consumption

Maximum: Approx. 1,500 W
Copying (with DADF continuous scan): Approx. 666 W (220-240V)*13
Standby: Approx. 45.5 W (220-240V)*13
Sleep Mode: Approx. 0.8W*14

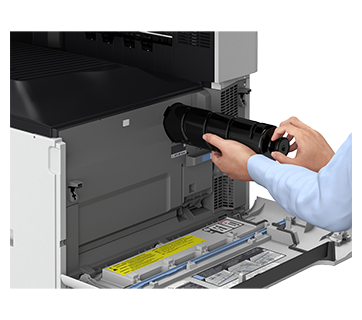

Toner Yield (Estimated Yield @6% coverage)

NPG-86 Toner BK: 42,000 pages

Tracking and Reporting

Universal Login Manager (ULM)
uniFLOW Online Express / uniFLOW Online

Remote Management Tools

iW Management Console
eMaintenance
Content Delivery System

Scanning Software

Color Network ScanGear 2

Optimisation Tools

Canon Driver Configuration Tool

Platform

MEAP (Multifunctional Embedded Application Platform)

Document Publishing

iW DESKTOP

Cassette Feeding Unit-AW1

Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)

Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead

Paper Size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm

Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 635 x 248 mm
Weight: Approx. 16.0 kg

High Capacity Cassette Feeding Unit-E1

Paper Capacity: 2,450 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead
Paper Size: A4
Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 650 x 248 mm
Weight: Approx. 28.0 kg

Card Readers

Copy Card Reader-F1
Copy Card Reader Attachment-B7
IC Card Reader Box for Numeric Keypad-A1

Others

Single Pass DADF-C1
DADF-BA1
Platen Cover-Y3
Utility Tray-B1
Numeric Keypad-A2
Media Adjustment Kit-A1
250GB SSD-A1
1TB SSD-A1
Memory Mirroring Kit-A1

Print Accessories

PCL International Font Set-A1
PS Printer Kit-BG1
Barcode Printing Kit-D1

System Accessories

Copy Control Interface Kit-A1
Serial Interface Kit-K3
Connection Kit-A3 for Bluetooth LE

Fax Accessories

Super G3 FAX Board-BH1
Super G3 2nd Line Fax Board-BH1
Super G3 3rd/4th Line Fax Board-AX1
Remote Fax Kit-A1
IP FAX Expansion Kit-B1

Accessibility Accessories

ADF Access Handle-A1
Voice Guidance Kit-G1
Voice Operation Kit-D1

Staple Cartridges

Staple Cartridge-Y1
Staple-P1
