Printer Type

5-Colour 24" (610 mm)

Number of Nozzles

15,360 nozzles
(MBK 5,120 nozzles,
Other Colours 2,560 nozzles each)

Maximum Print Resolution

2,400 x 1,200 dpi

Nozzle Pitch

1,200 dpi (2 lines)

Line Accuracy*1

± 0.1% or less

Ink Capacity

Sales Ink: 55 ml (MBK/BK/C/M/Y)

Ink Type

Pigment Ink

Printer Language

SG Raster (Swift Graphic Raster)
HP-GL/2, HP RTL
JPEG (Ver. JFIF1.02)
CALS G4*2

Printing Solutions

Printer Driver (Win/Mac versions), Direct Print Plus, Free Layout plus, PosterArtist Windows/Web & Lite, Wi-Fi Connection Assistant, PIXMA Cloud Link, Apple AirPrint (Mobile), Canon PRINT Inkjet/SELPHY (Mobile), Canon Print System (Mobile), uniFlow server

Management Solutions

Media Configuration Tool (includes Colour Customization Tool), Accounting Manager, Device Management Console, Quick Utility Toolbox

Standard Interfaces (Built-in)

USB B Port:
(Series B, 4 pins)
Hi-Speed USB
Full Speed (12 Mbit/sec)
High Speed (480 Mbit/sec)
Bulk Transfer

Network:
IEEE 802.3 10base-T
IEEE 802.3u 100base-TX
IEEE 802.3ab 1000base-T
SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP

Wireless LAN:
IEEE802.11 b/g/n
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
WPA3-SAE (AES)
WPA-EAP (AES)*3
WPA2-EAP (AES)*3
WPA3-EAP (AES)*3

Standard Memory

2 GB

Hard Disk

-

Display

LCD (4.3 inch/10.9 cm TFT colour)

CAD Drawing (Fast Q5 mode) in A1

Poster (Standard mode) in A1

1 min 45 sec

Media Feed and Output

Roll Paper

One Roll, Top Load, Front Output

Cut Sheet

Top Load, Front Output

Media Width (Roll/Cut Sheet)

Roll Width: 203.2 ~ 610 mm;
Cut Sheet Width: 203.2 ~ 610 mm

Media Thickness (Roll/Cut Sheet)

0.07 ~ 0.8 mm

Media Core Size

2 inch; 3 inch core (Optional)

Min. Printable Length

Roll Paper

203.2 mm

Cut Sheet

279.4 mm

Max. Printable Length

Roll Paper

18 m*5

Cut Sheet

1,600 mm

Maximum Outer Roll Diameter

150 mm or less

Borderless Printing

Supported for roll paper

Margins (Recommended Area)

Roll Paper (Top, Bottom, Sides)

20 mm, 3 mm, 3 mm

Cut Sheet (Top, Bottom, Sides)

20 mm, 20 mm, 3 mm

Margins (Printable Area)

Roll Paper (Top, Bottom, Sides)

3 mm, 3 mm, 3 mm

Cut Sheet (Top, Bottom, Sides)

3 mm, 20 mm, 3 mm

Dimensions (W x D x H)

Main Unit

978 x 748 x 439 mm

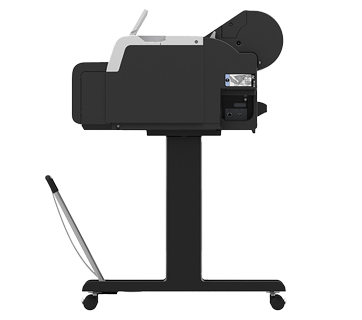

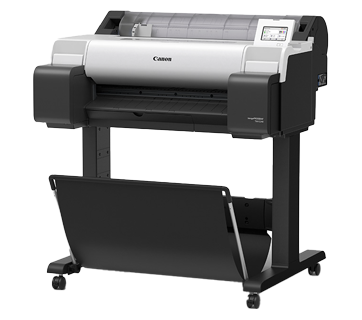

Main Unit + Printer Stand + Basket (SD-24)

978 x 868 x 1,060 mm (Basket Opened）
978 x 756 x 1,060 mm (Basket Closed)

Weight *6

Main Unit

40 kg

Main Unit + Printer Stand + Basket (SD-24)

50.9 kg

Packaged Dimensions (W x D x H)

Printer (Main unit + Pallet)

1,147 x 874 x 542 mm

Stand + Basket (SD-24)

1058 x 826 x 270 mm

Printer (Main unit with stand and pallet) (SD-24)

1,152 x 912 x 679mm

Packaged Weight *6

Printer (Main unit + Pallet)

Stand + Basket (SD-24)

Printer (Main unit with stand and pallet) (SD-24)

Power Supply

AC 100 - 240 V, 50 - 60 Hz

Power Consumption

Printing*7

59 W or less

Sleep Mode*7

1.6 W or less

Power Off

0.1 W or less

Operating Environment

Temperature

15 ～ 30 °C

Humidity

10 ～ 80 % RH (no dew condensation)

Acoustic Sound

Acoustic Power*8

Operation: Approx. 6.0 Bels

Acoustic Pressure*8

Operation: Approx. 39 dB (A)
Standby: 35 dB (A) or less

Printer Stand (Optional)

SD-24

2/3" Roll Holder

RH2-28

Card Reader Interface for uniFLOW

RA-02

Cutter Blade

CT-08

Ink Tank

Magenta: PFI-8031 (55 ml)
Matt Black/Black/Cyan/Yellow: PFI-8030 (55 ml)

Print Head

PF-06

Maintenance Cartridge

MC-31
