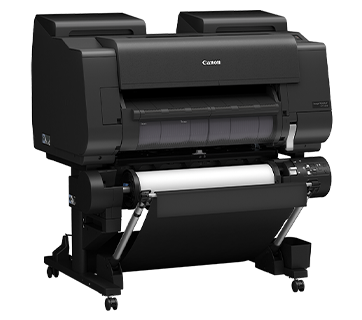

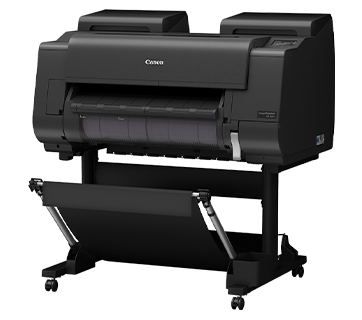

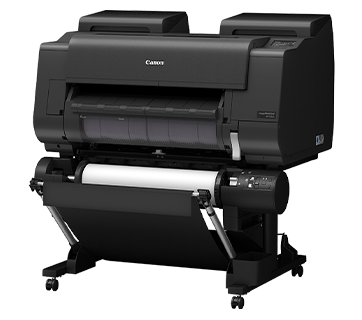

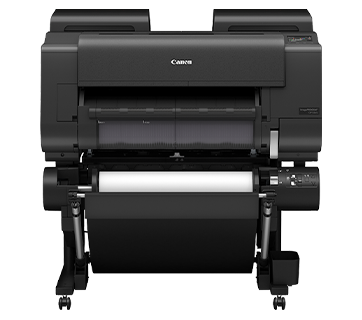

imagePROGRAF GP-526S

獨家七色、最佳CP值 Canon imagePROGRAF 大圖輸出機GP 系列驚艷登場。

產品特色

印表機具有輸出橙色墨水及灰色墨水的能力，讓列印的照片及海報呈現出驚人的色彩。

除了半透明蓋適合平貼牆安裝外，它還支援直接從USB列印，內建硬碟方便無需電腦即可重新列印。此外，智能卷筒功能自動進紙，檢測媒體類型，無縫追蹤剩餘數量。

LUCIA PRO II 墨水提高了耐光性並保留鮮豔的色彩以延長儲存時間，防止褪色。對於光滑媒體類型的照片和海報，這款打印機具有耐刮損能力，可在打印和處理過程中保護它們免受潛在損壞。

Printer Type	7 Colour, 24", 610 mm
Number of Nozzles	18,432 nozzles
Maximum Print Resolution	2,400 x 1,200 dpi
Nozzle Pitch	600 dpi × 2 lines
Line Accuracy	± 0.1 % or less
Minimum Ink Droplet Size	Minimum 4 picolitre per colour
Ink Capacity	Sales Ink: 160 ml / 330 ml / 700 ml Bundled Starter Ink: 330 ml (Matte Black, Cyan, Magenta, Yellow, Orange), 160 ml (Photo Black, Grey)
Ink Type	Pigment Ink: Matte Black, Photo Black, Cyan, Magenta, Yellow, Grey, Orange
Printer Languages	SG Raster (Swift Graphic Raster), PDF (Ver. 1.7), JPEG (Ver. JFIF1.02)
Standard Interfaces (Built-in)	USB A Port: USB Memory (Direct Print) USB B Port: Built in Hi-Speed USB Full Speed (12 Mbit/sec), Hi-Speed (480 Mbit/sec), Bulk Transfer Series B (4 pins) Gigabit Ethernet: IEEE802.3ab (1000 Base-T) IEEE802.3u (100 Base-TX) IEEE802.3(10 Base-T) SNMP (Canon-MIB) HTTP TCP/IP (IPv4/IPv6) FTP Wireless LAN: IEEE802.11n/g/b WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) WPA3-SAE (AES) WPA-EAP (AES) WPA2-EAP (AES) WPA3-EAP (AES)
Standard Memory	3 GB
Hard Disk	500 GB (Encrypted)

Heavyweight Coated Paper HG (A1)	1 min 23 sec
Glossy Photo Paper HG (A1)	2 min 43 sec

Packaged Dimensions (W x D x H) Weight	Main Unit + Pallet: 1,338 x 912 x 1,042 mm Approx. 125 kg Stand + Basket: 1,174 x 827 x 223 mm Approx: 27 kg Roll Unit: 1,244 x 562 x 461mm Approx. 26 kg
Dimensions (W x D x H) Weight (including Roll Holder Set, excluding ink and print head)	Main Unit: 1,110 × 734 × 628 mm Approx. 83 kg Main Unit + Stand + Basket: 1,110 × 984 × 1,168 mm (Basket Opened) 1,110 × 766 × 1,168 mm (Basket Closed) Approx. 100 kg

Media Feed and Output (Single Roll)	Roll Paper: Upper Load, Front Output Added Roll Paper: Front Load, Front Output Cut Sheet: Front Load, Front Output (Manual Feed using Media Locking Lever)
Media Width (Roll / Cut Sheet)	152.4 ~ 610 mm
Media Thickness (Roll / Cut Sheet)	0.07 ~ 0.8 mm
Minimum Printable Length	Roll Paper: 101.6 mm (exclude Cloth and Canvas media) Cut Sheet: 203.2 mm
Maximum Printable Length	Roll Paper: 18 m (varies according to OS and application) Cut Sheet: 1.6 m
Maximum Outer Roll Diameter	170 mm or less
Borderless Printing Width (Roll Only)	Recommended: 515 mm (B2), 594 mm (A1), 10", 14", 17", 24" Printable: 257 mm (B4), 297 mm (A3), 329 mm (A3+), 364 mm (B3), 420 mm (A2), 6", 8", 12", 16", 20", 22", 300 mm, 500 mm, 600 mm. Other than above, free size borderless printing is supported on only roll paper by user definition.

Power Supply	AC 100 - 240 V, 50 - 60 Hz
Power Consumption	Printing: Approx. 91 W Sleep Mode: Approx. 1.7 W Power Off: Approx. 0.1 W
Operating Environment	Temperature: 15 ~ 30°C Humidity: 10 ~ 80% RH (no dew condensation)
Acoustic Sound	[Acoustic Pressure] Operation: Approx. 48 dB (A) (Glossy Paper - Image; Print Priority - Standard) Standby: Approx. 35 dB (A) or less [Acoustic Power] Operation: Approx. 65 dB (Glossy Paper - Image; Print Priority - Standard) (Measured using ISO 7779 standard)
